Dari: $998.00
Kami menangani semua PPN dan bea. Perkiraan penghematan: $120-$280.
Penilaian kompatibilitas, proses pembayaran yang aman, pengiriman dengan pelacakan, dan layanan purna jual yang memadai.
Ini Ford F-150 Android Vertical Screen Radio is built around a large 1920 × 1200 portrait display, an 8-core processor, selectable RAM and storage configurations, Wireless CarPlay, Android Auto, GPS navigation and vehicle-specific integration.
The first product section uses the supplied images to answer the questions buyers usually ask first: what it looks like installed, what the assembly looks like, which phone functions are shown and what must still be confirmed.
The supplied overview shows the 16.2-inch format, 1920 × 1200 display, 8-core CPU, CarPlay, Android Auto, 4G, split-screen and DSP/EQ direction.
The RAM/ROM number printed inside this promotional image is not used as a universal order specification. Use the selectable configuration on the product page.

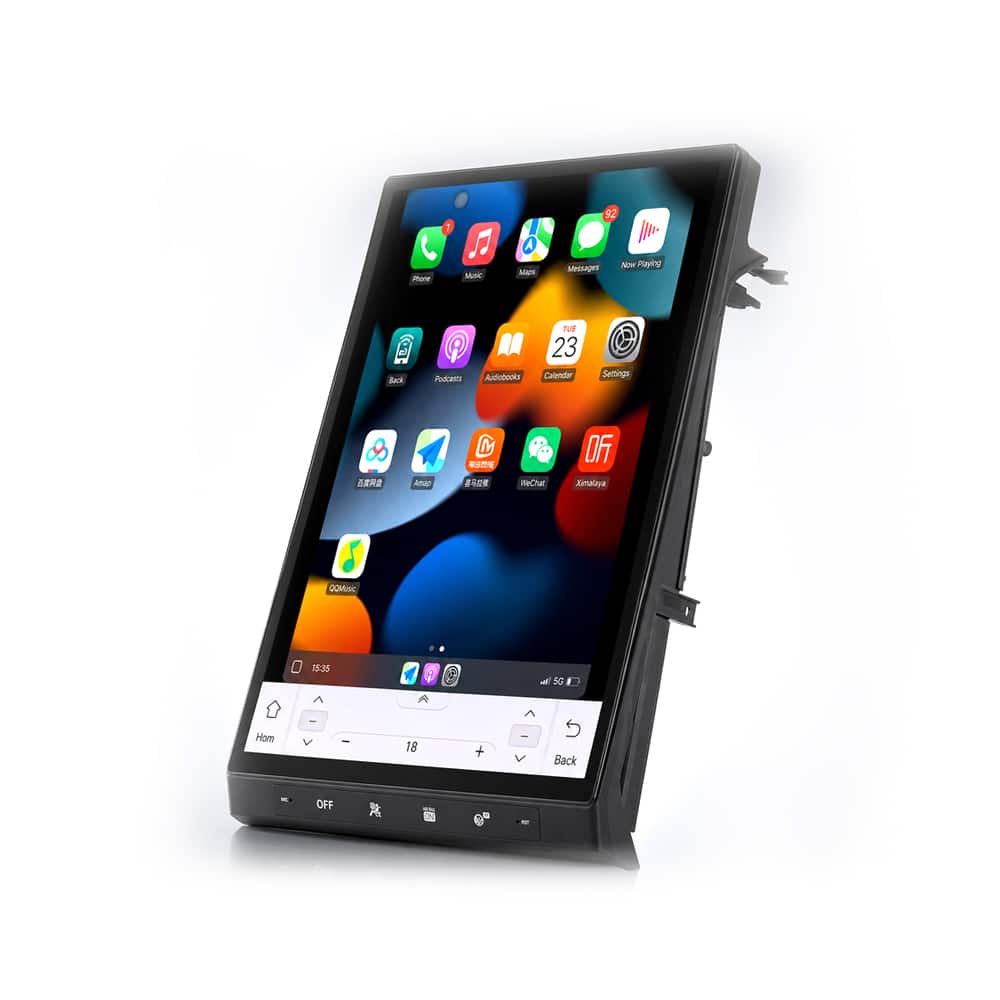

This image shows the portrait-screen housing and lower control area, helping buyers compare the product shape with the original F-150 center stack.

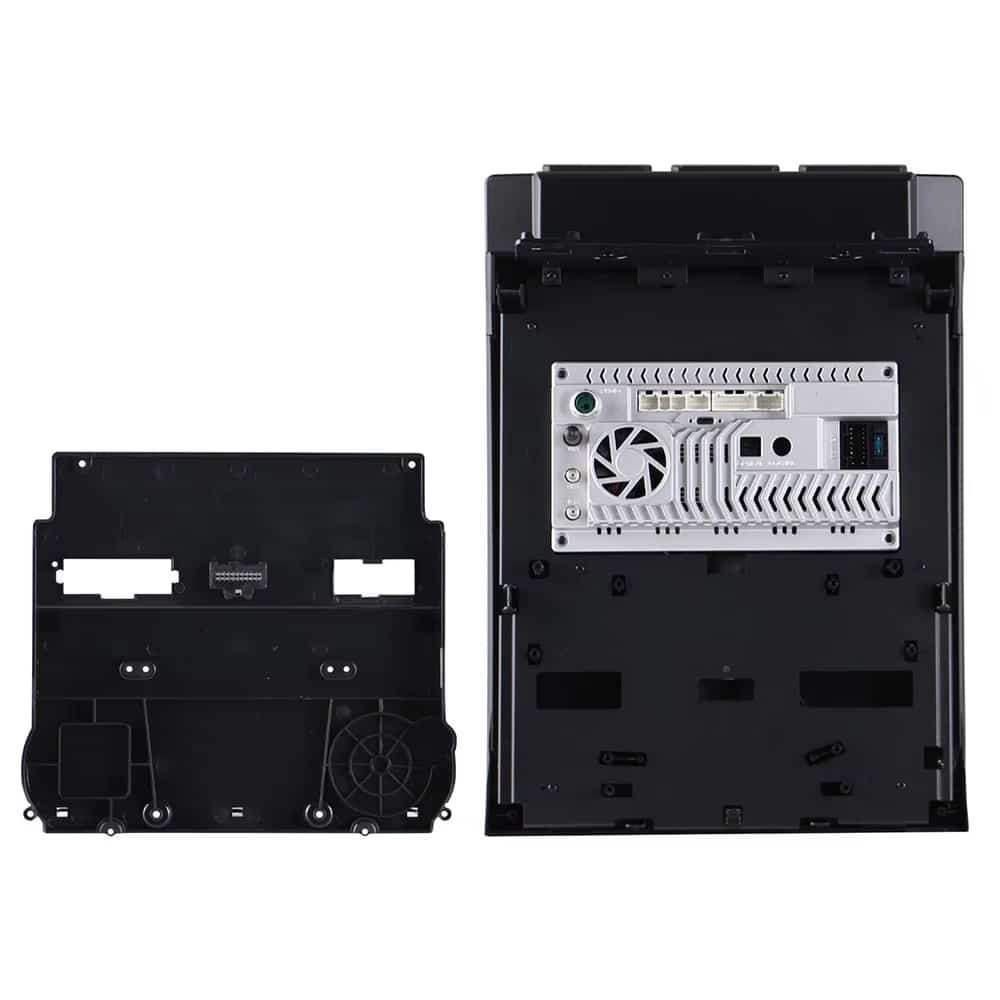

The rear view shows that this is a complete replacement assembly rather than a loose tablet. Harness and CANBUS matching still depend on the original radio and vehicle configuration.
Bring compatible phone navigation, calls, messages and music into a clearer portrait-format interface instead of relying on the older factory display alone.

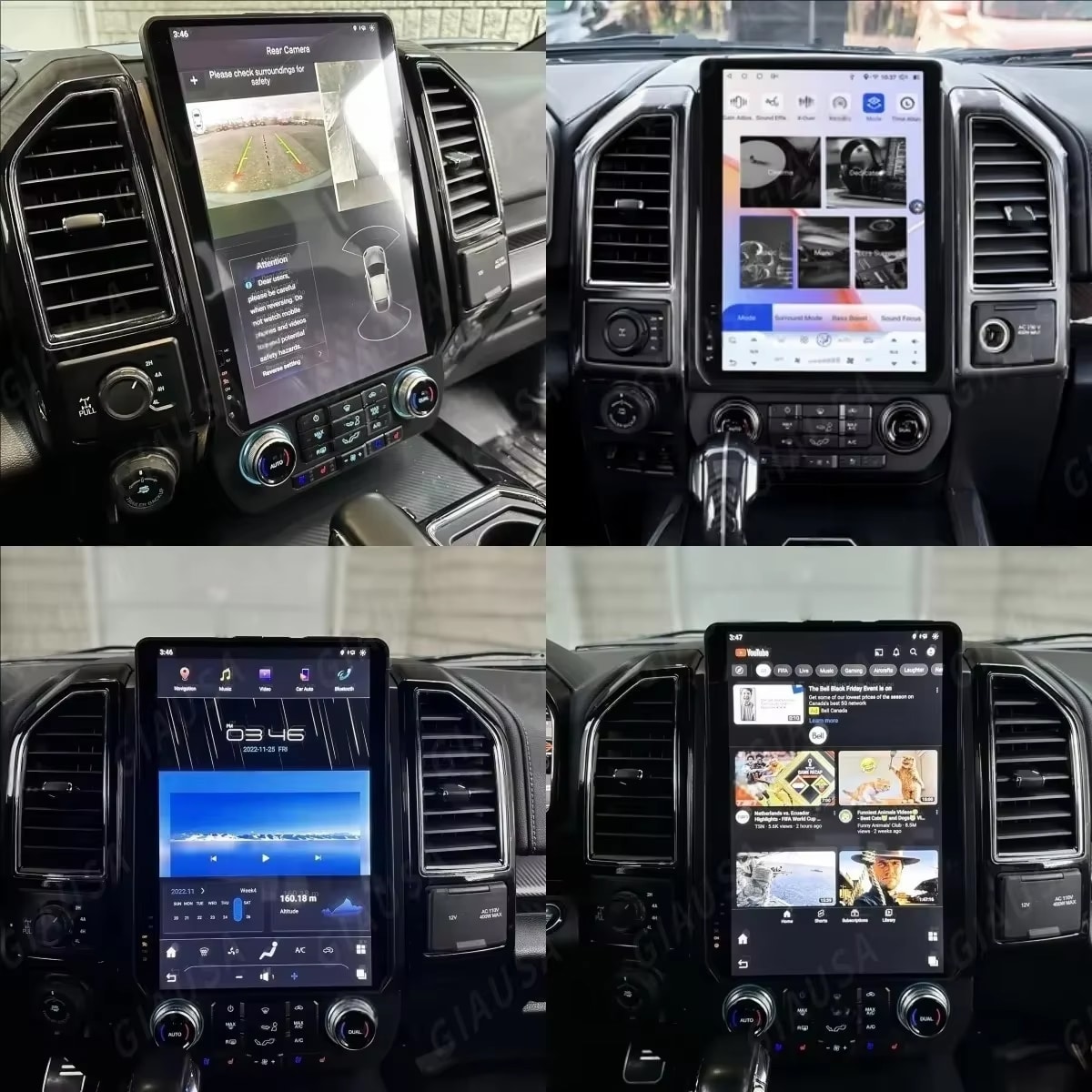

The multi-angle image helps buyers see the side profile, the large portrait layout and the lower control section before ordering.

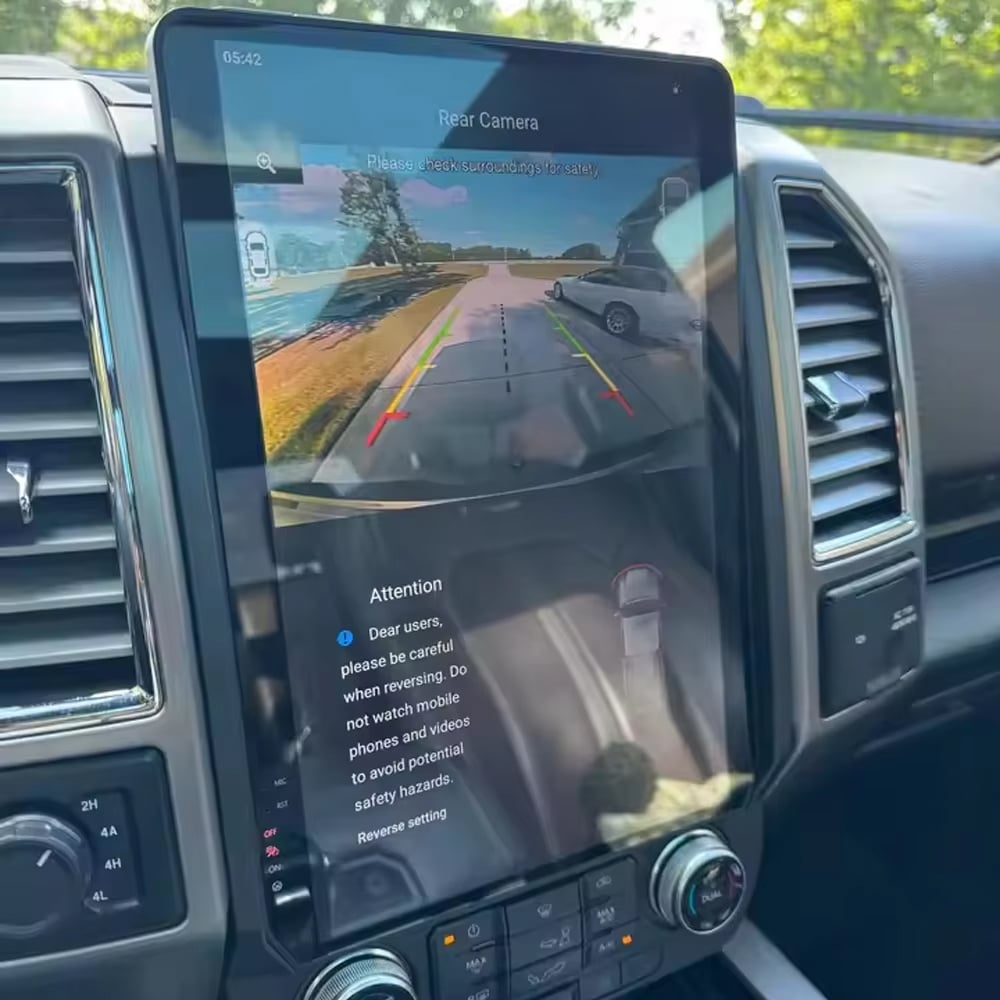

A larger display can make supported camera views easier to read. Factory camera retention must still be confirmed from the original radio and camera type.

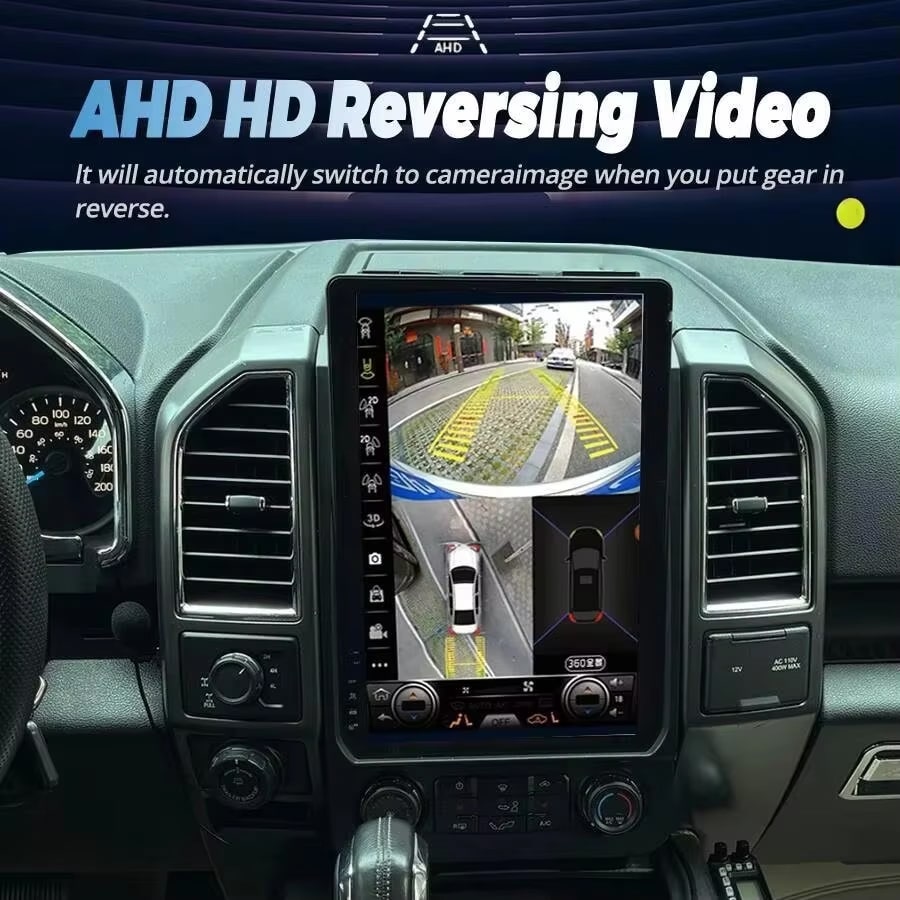

This graphic explains the camera-display direction. It does not prove that every factory 360-degree system is retained without an adapter. The camera format and interface must be checked before shipment.
The image supports the 8-core performance direction. RAM and storage must follow the option selected on this product page rather than a number printed in a promotional image.
RAM and storage follow the configuration selected on the product page. iKAGOO confirms the hardware label and software build before shipment.
This is not a universal tablet placed over the dashboard. The correct Ford F-150 vertical screen radio version is selected around the original center stack, SYNC generation, camera, amplifier, controls and vehicle wiring.
Retained where the matched CANBUS and original control layout support them. Confirm the buttons you use before shipment.
May be retained through the correct video interface after the original camera and radio type are identified.
Configuration-dependent. Some trucks need an additional adapter or integration route; do not assume universal retention.
Amplified systems may need a dedicated harness, decoder or retention module. Audio configuration is checked before shipment.
The supplied assembly retains a dedicated lower control area. Final control behavior depends on the matched dashboard version.
The Android radio changes the original interface workflow. Tell iKAGOO which SYNC, parking-sensor and vehicle functions are essential to you.
Compatibility confirmation is a purchase service, not an obstacle. It is how iKAGOO selects the correct connection route before the parcel leaves.
This Ford F150 vertical screen radio must be matched to the original radio, SYNC interface, harness, CANBUS, audio system, cameras and dashboard layout. Selected Raptor configurations also require confirmation.
The factory interface can change the panel, harness, CANBUS and function-retention method. Send a clear center-stack photo rather than ordering by year alone.
Plug-and-play means the correct vehicle-specific harness is supplied for a confirmed configuration. Stop if plugs do not match or any pin modification appears necessary.
Provide model year, full dashboard photo, close-up of the original radio, SYNC version, audio system and camera information.
iKAGOO checks panel shape, harness, CANBUS, factory amplifier, camera interface and left- or right-hand-drive layout.
Test audio, climate controls, steering-wheel buttons, camera, radio, CarPlay, Android Auto and vehicle communication before replacing all trim.
iKAGOO does not treat this as a generic Android screen. The order is reviewed as a vehicle-specific upgrade so the panel, harness, CANBUS, camera and audio route are considered before shipment.
Your model year is checked together with the complete dashboard, factory radio, SYNC layout, LHD/RHD position and other visible configuration details.
The connection route is selected around the original controls, camera, amplifier and radio interface instead of assuming every 2015–2020 truck is identical.
Tell us which factory functions matter most. iKAGOO confirms supported steering-wheel, camera, audio and control functions before the order is prepared.
You receive a clear test order and stop conditions. Do not force a connector, change pins or complete reassembly when a required function is not working.
If a question appears during setup, contact iKAGOO with the order number, photos and a short video so the support route is based on the actual vehicle and installation state.
The purchase remains covered by iKAGOO’s published warranty terms. Support does not end when the product is delivered.
You do not need to solve every compatibility detail alone before purchasing. Select the configuration, complete the order and then send the requested vehicle evidence so iKAGOO can confirm the correct route before shipment.
Select the RAM and storage option shown on the product page and complete checkout with your current vehicle information.
Provide the model year, market, LHD/RHD, complete dashboard photo, close-up of the factory radio, SYNC information, camera and premium-audio details. Connector or rear-label photos may be requested.
iKAGOO checks the center-stack version, factory interface and the functions you need retained instead of approving the order from the model year alone.
The correct panel, harness, CANBUS and required camera or amplifier integration route are confirmed for the selected configuration.
After compatibility confirmation, the order is prepared, checked and packed for international delivery under the current processing and shipping terms.
Before installation, compare the supplied parts and connectors with the instructions. Test sound, controls, cameras, CarPlay, Android Auto, GPS and vehicle communication before full reassembly.
The quick scores in the first screen link to these detailed modules. Each result is based on the current Ford F-150 product evidence, the supplied images and the iKAGOO fitment-confirmation process—not on a generic Android-radio template.
For an owner keeping a 2015–2020 F-150 or compatible Raptor long term, the 16.2-inch screen, modern phone integration, navigation, stronger hardware and updated cockpit appearance create a clear daily-use improvement over an older factory interface.
| Scoring dimension | Current product-specific basis | Skor |
|---|---|---|
| Peningkatan dalam penggunaan sehari-hari | Large touch interface consolidates navigation, music, calls and supported vehicle controls. | 24/25 |
| Display and cockpit improvement | 16.2-inch portrait display changes the visual center of the F-150 dashboard and provides more viewing area. | 19/20 |
| Phone and navigation integration | Wireless CarPlay, Android Auto and GPS functions address the most common modern-use requirements. | 19/20 |
| Hardware and multitasking value | 8-core CPU plus the selected RAM and storage option supports navigation, media and compatible Android-app use. | 18/20 |
| Long-term ownership value | Strongest for owners who use the truck daily and plan to retain it rather than sell it shortly. | 12/15 |
The upgrade requires dashboard disassembly, correct vehicle matching and a budget larger than a basic CarPlay add-on. Owners satisfied with the factory interface may not need the full 16.2-inch conversion.
This is not merely a screen-size purchase. It is most rational when the owner values a newer cockpit, frequent navigation, phone integration and long-term daily use.
Confirm that the large portrait layout fits your driving preferences, then complete the vehicle-photo review before ordering.
The 95/100 result applies only after the dashboard, original radio, SYNC generation, harness, CANBUS, steering-wheel controls, factory camera and amplifier have been confirmed. Before that review, the vehicle remains unscored rather than automatically compatible.
| Official compatibility dimension | Current product-specific basis | Skor |
|---|---|---|
| Kontinuitas Fungsi Pabrik · 25% | Core audio, climate interface, camera and communication functions are checked against the original system before shipment. | 24/25 |
| Kelanjutan Kontrol Asli · 15% | Supported steering-wheel and lower-panel controls depend on the correct CANBUS and harness package. | 14/15 |
| Integrasi Data dan Peringatan Kendaraan · 20% | Vehicle communication and supported on-screen information are tested after installation; exact retained data depends on the truck configuration. | 19/20 |
| Kesesuaian Arsitektur Fisik · 15% | Vehicle-specific frame and complete center-stack assembly are shown in the supplied product and installed images. | 15/15 |
| Factory-Style UI & Interaction Match · 15% | The screen integrates into the center stack, but Android interaction is intentionally different from the original Ford interface. | 14/15 |
| Pemasangan & Integrasi Perangkat Keras · 10% | Dedicated plugs and CANBUS are intended to avoid cutting, while premium audio and camera variants may need extra integration. | 9/10 |
If a required core function cannot be retained for the confirmed truck configuration, the product should not be presented as a standard compatible upgrade for that vehicle.
SYNC workflows, premium amplifiers, factory reverse cameras and 360-degree systems are not identical across all 2015–2020 trucks and may require a specific adapter or a different integration method.
The high score is earned through configuration matching, not by assuming every F-150 with the same model year is identical.
Send model year, full center-stack photo, close-up of the original radio, SYNC type, audio-system details, camera information and LHD/RHD layout.
This is not a simple portable screen. The original center stack must be removed, multiple harnesses and CANBUS connections must be matched, and every factory function must be tested before the dashboard is reassembled.
| Installation dimension | Current product-specific basis | Ease score |
|---|---|---|
| Dedicated fitment and panel | Vehicle-shaped assembly reduces fabrication work once the correct version has been selected. | 15/20 |
| Wiring integrity | Dedicated plugs are intended to avoid wire cutting, soldering and irreversible changes. | 18/20 |
| Kembali ke keadaan semula | The upgrade can normally be reversed if the original radio and trim are retained and wiring is not modified. | 15/20 |
| Dashboard disassembly | Large center-stack removal and careful trim handling require experience and controlled work. | 10/20 |
| CANBUS, camera, amplifier and testing | Configuration-specific connections and a complete function test add complexity beyond a basic plug-in accessory. | 10/20 |
The physical assembly may use dedicated connectors, but successful installation still depends on trim removal, connector identification, CANBUS matching, camera/audio integration and systematic testing.
Professional installation is recommended for premium factory amplifiers, 360-degree cameras, complex previous modifications, damaged connectors or uncertain vehicle wiring.
An experienced DIY installer may complete the work. A first-time installer should use a professional rather than treating “plug and play” as “no skill required.”
A plug does not match, pin changes appear necessary, a required CANBUS/camera/amplifier module is missing, previous wiring damage is found, the unit produces faults, or any required function fails during the test stage. Do not force connectors or fully reassemble the trim until the cause is confirmed.
The selected order configuration controls the final RAM, storage, software build and vehicle-integration route. Use the video together with the installed, hardware and connector images shown above.
| Kamera mundur pabrik | May be retained with the correct interface after camera and factory-radio confirmation. |
|---|---|
| Kamera 360 pabrik | Not treated as universal; adapter or additional integration may be required. |
| Penguat pabrik | Premium amplified systems require confirmation and may need a dedicated harness or module. |
| Ford SYNC | Do not assume every original SYNC function remains available; confirm the exact factory system and required functions before ordering. |
| Wire cutting | Not expected for a correctly matched standard configuration. Stop if any connector or pin arrangement does not match. |
These questions reflect the purchase and compatibility issues commonly raised around Ford F150 T-style radios, Tesla-style screens and large vertical Android head units.
Tidak. Fitment depends on the original radio, dashboard, SYNC generation, harness, CANBUS, camera, amplifier and LHD/RHD layout. Send clear photos before ordering.
It can fit selected configurations. Raptor-specific controls, camera systems and factory features must be reviewed separately rather than assumed from the F-150 model year.
Ya. Those terms describe the large portrait-screen format. The more precise product description is a Ford F-150 Android vertical screen radio.
It depends on the selected version. The factory interface can require a different panel, harness, CANBUS or integration method. Send a dashboard photo for identification.
Ya. Wireless CarPlay is included in the supplied product material for compatible iPhones and the matched head-unit configuration.
Ya. Android Auto support is shown. Confirm the exact wired or wireless connection mode for the selected software version.
It depends on the configuration selected on this product page. Choose the required RAM and storage option before ordering; iKAGOO checks the hardware label and selected build before shipment.
Ya. The supplied product material identifies an 8-core platform. The exact chipset and software build should follow the selected configuration.
Yes, where supported by the matched configuration. Retention depends on the correct CANBUS, harness and original vehicle system.
It may be retained with the correct interface. The original radio, camera type and video format must be checked before shipment.
Tidak secara otomatis. Some systems require an adapter or additional integration, and some configurations may not be supported. Confirm before ordering.
It depends on the truck. Factory-amplified systems may require a dedicated harness, decoder or retention module.
No universal promise is made. Large Android replacement radios can change or replace parts of the factory SYNC workflow. List the SYNC functions you need retained before ordering.
Yes, after correct matching. Dedicated connectors are intended to avoid cutting the original harness. Stop if plugs do not match or pin changes appear necessary.
Yes, for an experienced DIY installer. The normal reference is L3 Advanced DIY. Professional installation is recommended for premium amplifiers, 360 cameras, complex trim or modified wiring.
Test everything first. Check sound, climate controls, steering-wheel buttons, reverse camera, radio, Bluetooth, CarPlay, Android Auto, USB, GPS and vehicle communication before replacing all trim.
You send the vehicle evidence after checkout. iKAGOO reviews the dashboard, factory radio, SYNC, camera and audio configuration, confirms the correct panel, harness and CANBUS route, then prepares the shipment.
Send clear vehicle and dashboard details. Include the model year, market, LHD/RHD, complete center-stack photo, close-up of the factory radio, SYNC version, camera type and premium-audio information. Connector or rear-label photos may be requested where needed.
Select the product configuration first. After checkout, send the original dashboard and radio information so the correct panel, harness, CANBUS, camera and audio route can be reviewed before shipment.
Informasi yang jelas mengenai pemrosesan pesanan, pengiriman internasional, produk khusus kendaraan, layanan garansi, pengembalian barang, dan kiriman yang rusak.
Jawaban-jawaban ini memberikan ringkasan praktis. Halaman kebijakan lengkap yang tertaut di bawah ini berlaku untuk semua pesanan.
Sebagian besar pesanan iKAGOO dikirim dari pusat pemenuhan pesanan kami di Tiongkok setelah konfigurasi produk dan informasi kendaraan telah diverifikasi. Proses pemenuhan pesanan biasanya memakan waktu sekitar 1-3 hari kerja.
Perkiraan waktu pengiriman setelah barang dikirim adalah:
Perkiraan waktu pengiriman dapat dipengaruhi oleh proses bea cukai, hari libur lokal, pengiriman ke daerah terpencil, kondisi cuaca, atau keterlambatan dari pihak kurir.
Pengiriman internasional standar biasanya tidak mencakup PPN negara tujuan, bea masuk, biaya jasa perantara, atau biaya kepabeanan.
Untuk tujuan di Uni Eropa yang memenuhi syarat, sebuah opsi Layanan pengiriman DDP mungkin tersedia. Biaya-biaya terkait impor hanya akan dimasukkan jika opsi DDP dipilih saat proses pembayaran atau dikonfirmasi oleh iKAGOO secara tertulis sebelum pengiriman.
Apabila opsi DDP tidak dipilih, penerima bertanggung jawab atas segala biaya yang dikenakan oleh bea cukai setempat atau perusahaan pengiriman.
Layanan pengiriman ekspres atau cepat mungkin tersedia untuk produk dan tujuan tertentu. Ketersediaan layanan, perusahaan pengiriman, dan biaya tambahan akan dikonfirmasi sebelum pengiriman.
Tergantung pada tujuan dan jenis produk, iKAGOO mungkin menggunakan jasa pengiriman seperti DHL, FedEx, UPS, EMS, 4PX, atau penyedia jasa logistik lain yang menyediakan layanan pelacakan.
Setelah pesanan dikirim, nomor pelacakan atau tautan pelacakan biasanya akan dikirimkan ke alamat email yang digunakan untuk pesanan tersebut.
Pembaruan pelacakan mungkin memerlukan waktu beberapa hari kerja untuk muncul saat sebuah paket dipindahkan dari satu operator pengiriman internasional ke operator pengiriman lokal.
Kelayakan pengembalian bergantung pada alasan pengembalian, kondisi produk, status pemasangan, bukti yang disertakan, serta apakah pengembalian tersebut telah disetujui oleh iKAGOO.
Untuk pengembalian barang yang tidak cacat, produk tersebut biasanya harus dalam kondisi belum pernah digunakan, belum dipasang, lengkap, dan layak untuk dijual kembali. Pelanggan umumnya bertanggung jawab atas biaya pengiriman pengembalian yang telah disetujui.
Biaya pengiriman awal, biaya DDP, PPN, bea masuk, dan biaya logistik lainnya umumnya tidak dapat dikembalikan, kecuali jika diwajibkan oleh undang-undang yang berlaku atau dikonfirmasi sebaliknya oleh iKAGOO.
Jangan mengembalikan produk sebelum menerima alamat pengembalian yang telah disetujui dan petunjuk pengembalian dari iKAGOO.
Perlindungan tambahan mungkin berlaku jika iKAGOO telah memastikan kompatibilitasnya sebelum pembelian, pelanggan memberikan informasi kendaraan yang akurat, dan pelanggan bersedia mengikuti langkah-langkah pemasangan serta diagnostik yang wajar.
Jika iKAGOO memastikan bahwa tidak ada solusi teknis yang wajar yang tersedia, dan masalah tersebut dilaporkan dalam waktu 7 hari kalender setelah pengiriman, , pelanggan mungkin berhak mendapatkan pengembalian dana sebesar harga produk tanpa diwajibkan mengembalikan produk tersebut.
Biaya pengiriman awal, DDP, PPN, bea masuk, dan biaya pihak ketiga lainnya tidak termasuk dalam pengembalian dana harga produk ini.
Produk iKAGOO yang memenuhi syarat antara lain: Garansi perangkat keras terbatas selama 12 bulan mencakup cacat produksi yang telah diverifikasi serta kerusakan perangkat keras yang memenuhi syarat dalam kondisi penggunaan normal.
Tergantung pada masalahnya, solusinya dapat berupa diagnosis jarak jauh, bantuan konfigurasi, suku cadang pengganti, perbaikan, penggantian produk, pengembalian dana sebagian, atau pengembalian dana penuh.
Garansi ini biasanya tidak mencakup kerusakan yang disebabkan oleh pemasangan kabel yang salah, modifikasi tanpa izin, kerusakan akibat kecelakaan, masuknya air, benturan, penyalahgunaan, tegangan yang tidak sesuai, kesalahan pemasangan, atau peralatan pihak ketiga yang tidak kompatibel.
Pemeriksaan atau pengujian oleh pihak ketiga tidak secara otomatis membatalkan seluruh garansi. Namun, kerusakan yang disebabkan oleh perbaikan yang tidak sah, penggantian komponen, modifikasi yang tidak tepat, sirkuit yang putus, atau perakitan ulang yang tidak benar tidak tercakup dalam garansi.
Hubungi iKAGOO sebelum membongkar atau memperbaiki produk agar prosedur diagnostik yang tepat dapat diberikan.
Hubungi iKAGOO dalam waktu 7 hari kalender setelah pengiriman dan simpan kemasan asli, label pengiriman, aksesori, serta produknya.
Mohon berikan foto atau video yang jelas yang memperlihatkan:
Setelah dilakukan verifikasi, iKAGOO dapat mengatur pengiriman suku cadang yang hilang, penggantian, perbaikan, pengembalian dana, atau solusi lain yang wajar sesuai dengan kasus yang bersangkutan.
Hubungi iKAGOO sebelum memasang atau menggunakan produk ini. Permohonan penukaran atau pengembalian barang mungkin dapat disetujui asalkan produk tersebut belum pernah digunakan, belum dipasang, masih lengkap, dan layak untuk dijual kembali.
Pelanggan biasanya bertanggung jawab atas biaya pengiriman dan selisih harga apa pun jika produk, model kendaraan, tahun produksi, atau konfigurasi pabrik yang dipilih salah.
Label pengembalian prabayar gratis tidak diberikan secara otomatis.
Segera hubungi iKAGOO, sebaiknya dalam waktu 12 jam setelah melakukan pemesanan, saat mengajukan permintaan terkait alamat, konfigurasi kendaraan, atau perubahan produk.
Perubahan atau pembatalan tidak berlaku sampai dikonfirmasi oleh iKAGOO. Produk khusus kendaraan mungkin akan memasuki tahap pengadaan, pemrograman, pengujian, konfigurasi, atau persiapan khusus segera setelah pembayaran dilakukan.
Setelah proses persiapan atau pengiriman dimulai, pembatalan mungkin tidak dapat dilakukan, atau biaya wajar yang telah dikeluarkan mungkin akan dipotong.
Isi kemasan bervariasi tergantung pada produk, model kendaraan, sistem pabrik, dan konfigurasi yang dipilih.
Tergantung pada produknya, kemasan mungkin berisi perangkat utama, kabel-kabel khusus kendaraan, antarmuka CANBUS, adaptor, kabel USB, antena, mikrofon, perangkat pemasangan, dan aksesori pemasangan lainnya.
Silakan lihat halaman produk yang bersangkutan, foto kemasan, dan konfirmasi pesanan untuk mengetahui komponen-komponen yang termasuk secara tepat.
Anda dapat menghubungi iKAGOO melalui formulir kontak, email, WhatsApp, atau saluran dukungan situs web yang tersedia. Waktu respons biasanya dalam waktu 24 jam kerja.
Agar layanan dukungan teknis lebih cepat, cantumkan nomor pesanan, model dan tahun kendaraan, foto sistem pabrik, foto produk, serta video yang jelas yang memperlihatkan masalahnya.
Kunjungi: Kontak dan Dukungan iKAGOO
Pembayaran diproses melalui metode pembayaran aman yang ditampilkan saat proses checkout. Pilihan kartu, dompet digital, dan cicilan yang tersedia dapat bervariasi tergantung pada negara, mata uang, penyedia layanan pembayaran, dan kelayakan pelanggan.
Setiap layanan cicilan, termasuk opsi yang ditawarkan oleh PayPal atau penyedia layanan lainnya, tergantung pada ketersediaan di wilayah tertentu dan ketentuan persetujuan dari penyedia layanan tersebut.
Harap baca halaman kebijakan selengkapnya sebelum memesan, terutama terkait produk khusus kendaraan, ketentuan pajak internasional, dan pengembalian barang yang berkaitan dengan pemasangan.
FAQ ini merupakan panduan sederhana bagi pelanggan. Halaman kebijakan lengkap yang telah dipublikasikan, konfirmasi pesanan, dan undang-undang perlindungan konsumen yang berlaku akan menjadi acuan utama jika terdapat perbedaan redaksional.
